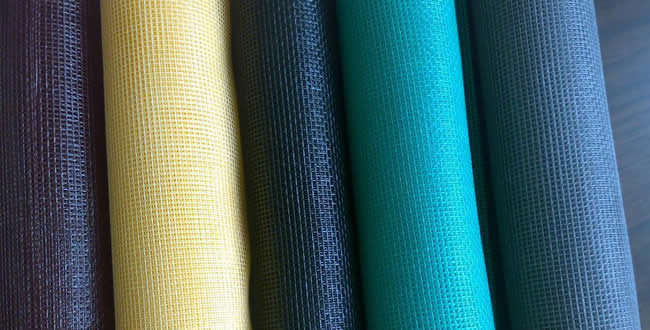

Ventilate and Easy Washing Fiberglass Screen Products: Plisse Insect Screen, Black coated Fiberglass Fly Screening, Sun Shade Window Screen, Door Curtains and Pet Screen

Fiberglass screen mesh has stable shape, straight surface and a long service life. It is well ventilate, easy washing, resistant to fire and corrosion proof.

This fiber glass fabric is mainly used as insect screen or sunshade screen mesh in many countries. It can be made into insect proof ventilate screen for window or door shield, pet screen, fiberglass portiere and other forms for a wide range of applications.

Fiberglass Screening Used for Ventilation, Insect Preventing, Installed on Windows and Doors

Vinyl-Coated fiberglass screen is a kind of fiberglass mesh fabric made under the process of plastic-coating, plain weaving, and high temperature-fixing. It is supplied in rolls or we can cut it to pieces of certain sizes according to customers request.

Specifications:
Diameter:0.011inch,0.013inch;
Standard (Mesh/inch ): 18x16, 18x14,14x14,20x20, 18x18, 16x16;
Standard Color: White, Black, Grey,Coffee etc.
Standard Width(inch): 24", 30", 34", 36", 42", 48", 60", 72",84",96",108";
Special Size are available according to requirements of customers.

Black Coated Fiberglass Nets

Mosquito Proof Fiber Glass Mesh Shading Screen for Doors and Windows, Cut to Pieces. We also supply fiberglass screen pleated into plisse mesh panels for retractable windows.

Technical Details:
Color available for fiberglass screening:
gray/back, white/gray, gray and pale/gray.
Standard width: 200(cm),220(cm)
Standard roll length: 30m.
Composition of fiberglass mesh screening:
32% fiberglass and 68% PVC.
2/2basket weave:
32% fiberglass and 68% PVC.
Mesh Weight:
343(G/M2) 232.86(G/M2)
Fabric Thickness: 0.32MM 0.3MM
Openness Factor: approximately 10%, approximately 14%
Uv Blockage: approximately 90%, approximately 86%
Breaking Strength: warp>90(KG) fill>77(KG), warp>75(KG) fill>30(KG)
Yarn Diameter: 0.28MM warp 0.28 MM fill
Use for: Interior screen

Pleated Fiberglass Mesh Window Screen

Black Vinyl Coated Monofilament Fiberglass Mesh for Shading and Shielding Screen

Vinyl Coated Glass Fiber Screen

Vinyl coated fiberglass Screen is made of fiberglass filament/yarn under the process of plastic coating, plain weaving and high temperature-fixing.

Coated fiberglass Screen is well ventilate, well transparent, easy washing, anticorrosive, resistant to flame. It has strong-tensile strength, and can serve a long service life. The popular colors of grey and black make vision more comfortable and natural.

Specifications:
Standard mesh/inch: 20x20, 18x18, 16x16, 18x16, 18x14
Standard color: White, black, grey and other colors at request.
Standard width: 24", 30", 34", 36", 42", 48", 60", 72", 84", 96", 108".Custom orders with different width, colors or length available to meet customers' specific requirements.
Weight: 115g/m2, 130g/m2, 150g/m2, 180g/m2

Application:
Fiberglass screening is widely used for all sorts of airy installation preventing insects and mosquito in construction, orchard, ranch, etc.

Why Choose Us

Aoyong, the well-known fiberglass mesh tape, screen, geogrid and fabric products manufacturer of China.

Contact Us

AoYong Glass Fibre Fabrics Co., Ltd.
Add: Yongxin Street, Development Zone, Dezhou, China
Email: sales@fiberglassmeshfabric.com
Url: http://www.fiberglassmeshfabric.com
