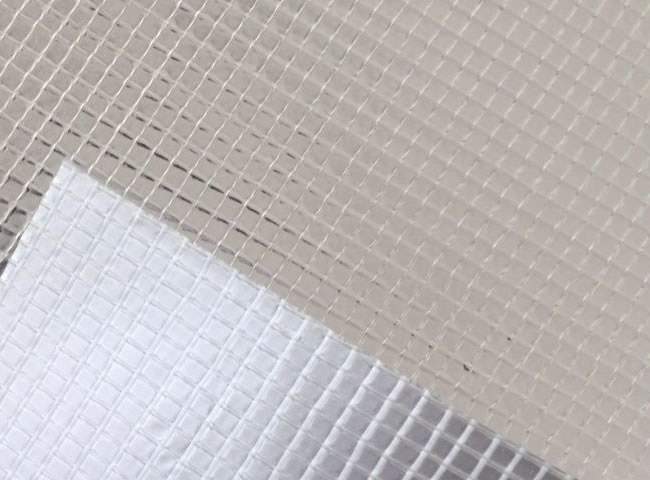

Self-adhesive Aluminum Tape Reinforced with Fiberglass Mesh
We supply aluminium self adhesive tape reinforced with fiberglass cloth, mainly in three width: 100mm, 75mm, 50mm. Aluminum + Fiberglass tape is a kind of Thermoshield Heat Protection Tape featuring heat resistance, suitable for such applications of duct protecting, etc.
Major products:
Self-adhesive aluminum tape reinforced with fiberglass mesh, width 100mm
Self-adhesive aluminum tape reinforced with fiberglass mesh, width 75mm
Self-adhesive aluminum tape reinforced with fiberglass mesh, width 50mm
Technical Data:
Type of carrier: Aluminum reinforced with glass-fiber;
Carrier thickness [mm]: 30;
Carrier color: Silver shiny;
Type of spacer: Silicone paper;
Spacers Color: White;
Temperature. Application: -5 ° C (minimum);
Type of adhesive (inside): Rubber;
Strength of adhesion to steel, (inner side): 25 ÷ 30 N/25mm; after 24 hours;
Temperature resistance: -10 ° C ÷ 90 ° C;
Tensile strength: 80 N/25mm (only aluminum);
Elongation at break: 8 ÷ 11% (only aluminum);
Fire resistance: According to class 0;
Water vapor transmission: 0.015 g / m2 (ASTM B479 95).
We also provide with our products:
Technical drawings, Installation Instructions, Technical Data Sheet, Approvals / Certificates - quality certificate, Warranty conditions and references needed.
