EIFS Reinforcing Mesh - Fiberglass Netting Fabric for External Wall Insulated Finish Systems (EIFS) Reinforcing Render- Construction building materials Exported to Spain, Chile, America and other countries.
What is EIFS Mesh?
Fiberglass mesh used as building material for construction of External Insulation Finishing Systems (EIFS) is simplified as EIFS mesh or insulation mesh. Fiberglass mesh reinforcement used in EIFS construction can avoid the deformation of the entire insulation structure caused by the outside momentum of collision or squeeze. Glass Fiber EIFS Mesh has high impact force strength, can reinforced insulation wall layer with easy construction and quality control. EIFS stucco mesh plays the role of "soft steel" in the concrete wall system embedded in base plastering coat.
EIFS Fiberglass Mesh is made of alkaline resistant fiber yarns and has been tested to DIN EN ISO 13934-1 tensile strength standards.
We offer four types of EIFS fibreglass mesh for rendering and reinforcing uses:
Heavy Duty Fiberglass Mesh for EIFS: Heavy weight external mesh designed specifically to reinforce areas exposed to increased stress, especially a plinth and other demanding places;
Medium Duty EIFS Mesh: Medium weight fiberglass cloth is commonly used for reinforcing and rendering surfaces with a big opening of 10mm x 10mm;
Standard mesh for EIFS: Standard weight fiber glass mesh fabric for common stucco skim coating, mosaic tile backing and marble backing.
Self adhesive EIFS mesh in strips and tapes.
EIFS Fiberglass Mesh 10oz and 20oz Weight Heavy Type
Fiberglass mesh for EIFS application:
Supplied to USA customers
Quality:
10oz and 20oz mesh
Size of the rolls: 38" x 75' for both weights.
EIFS Stucco Mesh, 4.5 OZ
EIFS Stucco Mesh for Canada.
Description: EIFS Fiber Mesh
Density:
4.5oz/square yard
Size:
44m2 rolls in 1m x 44m
EIFS Adhesive Mesh
Density: 155g/m2
Size: 1m x 44m
Self adhesive EIFS mesh
4.4OZ fiberglass mesh.
Size:
38”x150”
EIFS Fiberglass Mesh White, Alkaline Resistant
USA quality
EIFS Stucco Fiberglass Mesh:
38-inches (96.5cm) x 150-feet (121.9cm),
Weight 153grams/m2 after coating, 136grams/m2 before coating.
Surface: White, alkaline resistant. Resin:Modified Acrylic 18-20% content.
Weave:5 threads per inch.
Material: fiberglass yards made from fibers with diameters of no less than 9-13 microns.
Emulsion glassfiber so that the finished product is super-soft.
Packing: Each roll to be shrunk wrapped, then 4-rolls per carton, then 9-cartons per pallet.
Warp 130 tex; Weft 295 tex; Tensile strength above 1150 warp and weft.
C glass Fiberglass Reinforcing Mesh for EIFS, Stucco and Terrazzo
Fiberglass reinforcing mesh, Alkali resistant.
Leno weave. C-glass. Acrylic co-polymer coating. Flexible. Soft.
Product Specification:
Product: Fiberglass Reinforcing Mesh 38” (Standard)
Composition: C-glass
Weight: 4.5 Ounce
Roll Size: 38” x 150’ (475 Sq Ft)
Color: White
Hole Size: 4 x 4 or 5 x 5
Packaging: 4 rolls per box
Packaging: Plastic sleeve each roll
Pallets: Wood with nine boxes per pallet
Product Specification:
Product: Fiberglass Reinforcing Mesh 48” (Standard)
Composition: C-glass
Weight: 4.5 Ounce
Roll Size: 48” x 150’ (600 Sq Ft)
Color: White
Hole Size: 4 x 4 or 5 x 5
Packaging: Plastic sleeve each roll
Packaging: 4 rolls per box
Pallets: Wood with nine boxes per pallet
Product Specification:
Product: Fiberglass Reinforcing Mesh 38” (Heavy)
Composition: C-glass
Weight: 12 or 14 Ounce
Color: White
Roll Size: 38” x 75’ (237.5 Sq Ft)
Hole Size: 4 x 4 or 5 x 5
Packaging: 4 rolls per box
Packaging: Plastic sleeve each roll
Pallets: Wood with nine boxes per pallet
EIFS Mesh Stripes
C-glass impregnated with alkali-resisting dispersion.
Available in three widths, two weights and two colors (white and yellow).
Cut stripes for easy and convenient use.
4x4 160g Fiberglass mesh for EIFS systems
Construction material
Roll size: 1m width x 50 m length
Mesh size: 4mm x 4mm
Quality: 160g/m2.
Packed in 1x20 full containers.
Applications:
Fiberglass Mesh applied to cement, plaster, walls, buildings and other structures inside and outside surface for base coat plastering and rendering, a new type of building materials for external wall stucco works.
Main Features

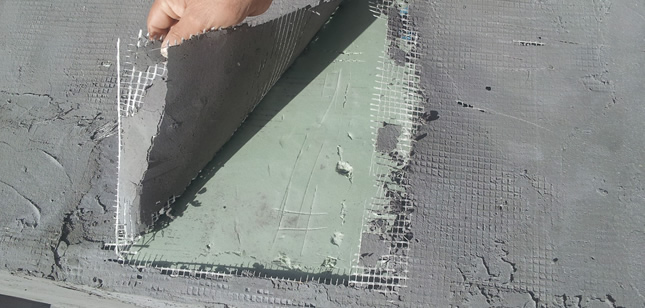

•Easy to install, by embedding in to wet base coat render especially for large surface areas
•Durable and Reliable: Resistant to chemical agents: glass mesh free from corrosion and unaffected by alkali
•Light and easy to transport
•Adaptable to uneven surfaces
•Easy and safe to use – only simple tools (scissors, utility knife) needed to work with our fiberglass mesh.
Self Adhesive Fiberglass Mesh Reno Weave used for Internal and External Wall Plastering and Insulation Finishing System.
We can offer a slitting service to custom cut fiberglass mesh to different tape or strips widths for particular application.
