Fiberglass Mesh Machine -Weaving Loom and Production Line - Fiberglass Insect Screen Weaving Loom, Fibre Glass Mesh and Ahesive Fiberglass Tape Production Line
We supply Fiberglass Mesh Machinery Equipment and Production Lines for fibre glass mesh fabrics.
We export fiberglass machines with spare parts to Turkey, Kosovo and other countries for Fiberglass mesh production company and factories, manufacturers.
Major products include Machine equipment of FiberGlass Plaster Mesh, selvaged fiberglass insect screen loom, fiberglass yarn machine, fiberglass tissue machine and fiberglass geogrid machine.
Fiberglass Mesh Machine for woven fiber glass netting fabrics
Type: High efficieny weaving loom
· Fiber yarn warping machine
· Fiberglass loom machine
· Machine for Cross weave fiberglass for manufacturing of Cross Filament Tape
· Fiberglass branding machine
Weaving Looms for Production of Glass Fiber Fabrics and Nets
Material Type: Weaving looms for production of glass fabrics and nets from fiber glass dtex 52.
Weight of produced glass fiber fabrics: approx. 280-390 g/m2.
The weaving looms are used to produce following fibre glass fabrics:
Parameters of glass fabric/net:
Weight: 380 g/m2
Warp: 22 threads / cm
Weft: 13 threads / cm
Satin 5/3
Width of fiber fabric 92 cm
Length of roll: 120-150 cm
Weight: 290 g/m2
Warp: 36 threads / 10 cm
Weft: 20 threads / 10 cm
Satin 8/3
Width of fiber fabric 92 cm
Length of roll 120-150 cm
Weaving Loom Size:
Width approx. 220 cm completely equipped with all parts and accessories.
Fibre Glass ( building material used for wall covering) machinery
· Fiberglass plastering mesh machine
Fibreglass Machines for Non Woven Fiberglass Products and Others
· Fiberglass Choping machine
· Fiberglass non woven needle punching machine
· Fiberglass shreder machine
· Fiberglass Texturized machine
· Fiberglas aluminium coated printing machine
· Fiberglass non woben filter bag machine
· Fiberglass stitcher machine

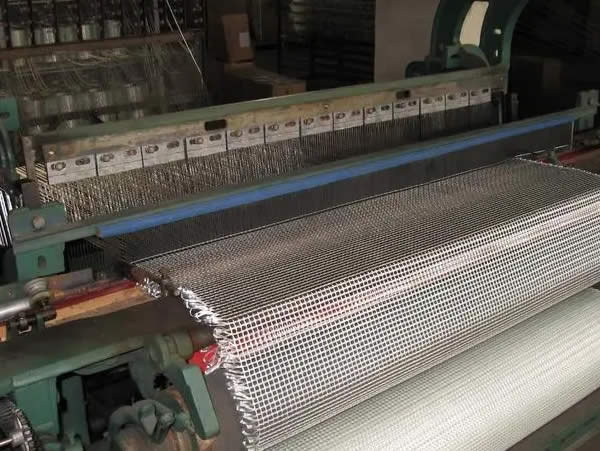

Glass Fibre Reinforcing Mesh Production Line
Fiberglass reinforcing mesh weaving machine
Main application: Fibre Mesh for reinforcing render and plaster, ETICS ( (External Thermal Insulation Composite Systems)), facade paster, render reinforcement.
Most populäre mesh, 160g/m2, mesh size 5x5mm, leno weaving.
Feeding of glass fibre yarns from creels to warping (beaming machines)
Weft inserting machine (rapier looms or air jet weaving loom).
Fiberglass mesh coating and dry machine
Production capacity of the mesh around 3000-4000 m2/ 24 hours.
Can be up to 8000 m2/24 hours.
Fiberglas Geogrid Machine
Machine for production following fibre products:
Geogrid fabric in 2 meter width x 50 meter rolls
Cell size 10 mm x 10 mm / 25 mm x 25 mm / 40 mm x 40 mm
With geotexitle 45 gram embedded composite type
Or without geotextile plain form

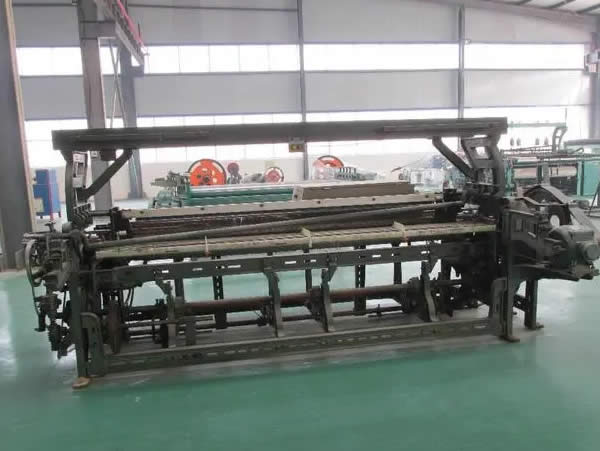

Fiberglass Mesh Weaving Looms Applied for Black Vinyl Coated Fiberglass Mesh
Electric Motor: 1.5 KW FOH- 56- 6, 2.0 KW FOH - 58 - 6, 960 rotation/ minutes.
Max. shaft rotation: 130-200 rotation/minute.
Weft yarn choice: mechanical control, six color.
Weaving shaft coil distance(mm):1380, 1860, 2060, 2366, 2566, 2866.
Weaving shaft coil diameter(mm): 550, 600.
Cloth Full Rolling Diameter(mm): 400.
Warp Yarn Feeding: Auto feeding.
Weft Yarn Feeding: Auto feeding.
Outside Dimension of the Machine(mm):
Width:3875, 4180, 4380, 4680, 4880, 5180.
Depth: 1857; Height:1640.
Weight of the Machine: 1600kg (motor not included).
Production Line of Fiberglass Mesh for Plaster and Adhesive Fiberglass Tape for Drywall Joints
- drawing line
- weaving machine
- warping machine
- gluing machine
- cutting machine
Product capacity: 200 rolls daily one meter width and diverse length
The production line is used to produce following products:
Fiberglass mesh for plaster reinforcement and adhesive fiberglass tapes for drywall joints.
Fiberglass mesh with diversity of square meter weights starting from 65grams to 220 grams/m2
Fiberglass mesh with diversity of square meter weights starting from 50 grams to 100grams/m2
Roll size: 1m wide and various length.
Fiberglass Mesh & Insect Screen Weaving Looms
Fiberglass insect screen mesh vaving machine, warping machine, and coting machine
Fiberglass Yarn Drawing Machine
Temperature Control Device
Yarn Winding Machine
The machines can also produce the following products:
| Fiberglass Window Screen / Insect Screen | |||
| specification | Technical notes | ||
| Mesh/inch | Weigth | Roll size | Plain weaving Color : Black, gray, gray/white, green,etc |
| 14x14 | 115g/m2, 120g/m2, 125g/m2, 130g/m2, 150g/m2, 180g/m2 | Width: :0.61m to 2.2m,custom require available at request Length: 25m,30m,30.5m,50m,custom require available at request | |
| 16x14 | |||
| 16X16 | |||
| 16x18 | |||
| 18x18 | |||
| 18x14 | |||
| 20x20 | |||
