Fiberglass Mesh Woven Cloth E Glass, C Glass, 150 GR, 160 GR, 45-145GSR, for Screen and Tape, Pre impregnated and Non impregnated
We are established and long term supplier of fiberglass mesh for many customers in Turkey, Chile, USA, Spain, Middle East and other countries.
Our fibre glass mesh is mainly used for Construction Industry, Tiles Industry and Electrical Industry for reinforcement.
We manufacture and supply fiberglass mesh of C glass material, E glass and AR glass.

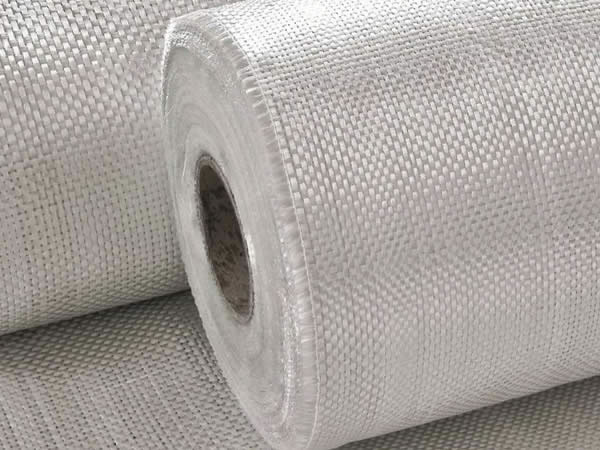

Fiberglass Mesh Woven by Fibre Glass Yarn
Fiberglass mesh woven by fiberglass yarn and then coated by alkaline resistant latex as per below details.
Fibre Glass Mesh 45 GSM x 1000 mm width
Fibre Glass Mesh 70/80 GSM x 1000 mm width
Fibre Glass Mesh 110 GSM x 1000 mm width
Fibre Glass Mesh 145 GSM x 1000 mm width
Fibre Glass Mesh Roll 145 GSM x 50 mm width
Fibre Glass Mesh Roll 145 GSM x 100 mm width
Fibre Glass Mesh Roll 145 GSM x 150 mm width
Fiberglass Mesh of Material C Glass
Mesh 4 X 4
Roll size: 1m x 50m
Material grade: C
Color: Orange
Weight: 150 gram
/ m2
Packing: Opp film per roll, 2 rolls packed in one plastic bag.
Fiber Glass Mesh 160 GR.
Mesh 4 X 4
Roll size: 1m x 50m
Material grade: C
Color: Orange
Weight: 160 gram
/ m2
Packing: Opp film per roll, 2 rolls packed in one plastic bag.
Fibre Glass Mesh 180 GR
Fiberglass mesh 4x4
Weight:
180gr/m2
Color: Orange color
Roll size: 1m x 50m or custom
Packing: Opp film per roll, 2 rolls packed in one plastic bag.
Fiberglass Mesh 90 GR
Mesh 4x4
Rolll size: 1mx50m
Weight:
90gr/m2
Color: White
Packing: Opp film per roll, 2 rolls packed in one plastic bag.
Fiberglass Mesh 60 GR
Mesh 2x2
Weight:
60gr/m2
Color: White
Packing: Opp film per roll, 2 rolls packed in one plastic bag.
Fiberglass Mesh 95G/110G
Fiberglass mesh roll 50mx1m
Weight:
95g/110g

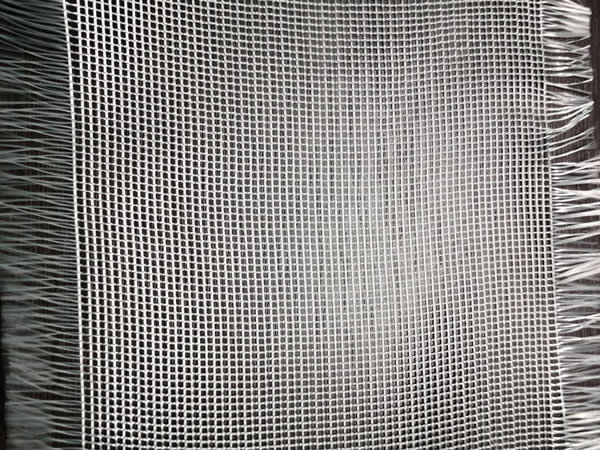

Non Impregnated Fiberglass Mesh
Non pre-impregnated fiberglass net, used for manufacture of flap butt-end wheels as backing.
Without impregnation with phenolic binder.
Silane coupling agent – silane.
Woven structure - Leno.
Quantity of thread Warp - 80+/-2/10 cm, Quantity of thread Weft - 40+/-1/10 cm.
Length of roll - 600-700m, Width of the roll - 1460 (+/-10) mm.
Breaking strength row not less SPA-60 = 400, SPA-80 = 450, SPA-100 = 540 N/2,5 cm.
Shipping in 20'containers FOB port China.
Fiberglass mesh of E-Glass Yarn
Fiberglass Mesh wide 100 cm
W*L:: 100cm*50m
Material grade: E-Glass
Density: 4*4mm 50 gr
Yielding strength: More than 1000 MPa
E-Glass Fiber Net Cloth Technical characteristics:
| Name of Indexes | SPA-60 | SPA-80 | SPA-100 | SPA-120 | SPA-150 | SPA-170 | SPA-260 |
| 1. Width of the roll, [mm] | 1460 ± 10 | ||||||
| 2. Type of glass | E-glass fiber mesh cloth | ||||||
| 3. Impregnation | Without impregnation with phenolic binder | ||||||
| 4. Silane coupling agent | Silane | ||||||
| 5. Woven structure | Leno | ||||||
| 6. Quantity of tread, (thred/10cm) | 80 + 2/10 CM 40 ± 1/10 CM |
40 + 2 / 10 CM 20 ± 1/10 CM |
|||||
| 7. Area weight | 60 ± 5 g/m2 |
80 ± 10 g/m2 |
100 ± 10 g/m2 |
115 ± 10 g/m2 |
150 ± 15 g/m2 |
170 ± 15 g/m2 |
260 ± 20 g/m2 |
| 8. Breaking strength row, not less, [N/2,5 cm] | 400 | 450 | 540 | 560 | 800 | 882 | 1000 |
| 9. Length of roll, [m] | 600 - 800 | 400 - 500 | |||||

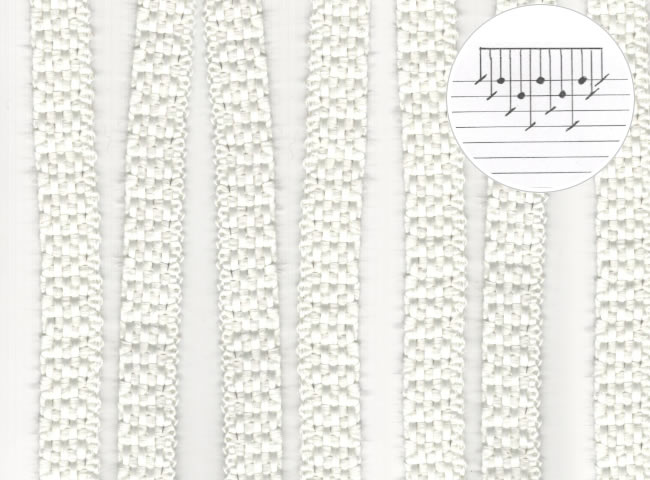

Glass Fiber Webbing Stiffened with Wire
We manufacture and supply Glass Webbings stiffened with wire woven through the fabric.
25mm / 26mm. Glass Wired/Stiffened web, supplied on 25 metre coils.
16mm Glass Wired/Stiffened Web, supplied on 25 metre coils.

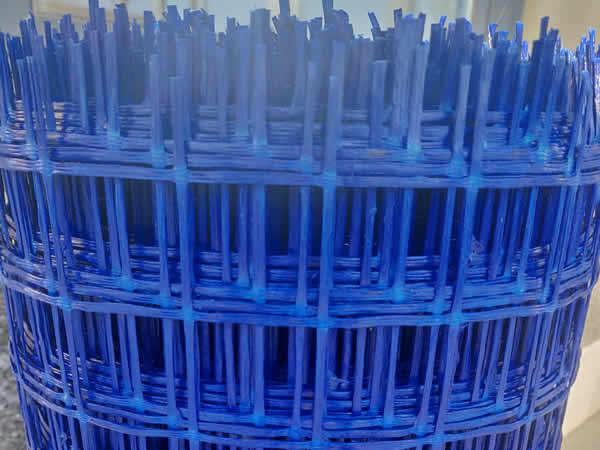

Fiberglass Mesh 42 x 42mm
Plastic Coating Blue
Fiberglass mesh, plastic coating blue,
160gr/m²
In
1m x 50m roll
Packing: 21 rolls per pallet,
1000 rolls/container
We also supply raw fiberglass mesh without glue.
