Pleated Insect Screen Mesh-20x20, 18x16 Black, Grey-Door and Window Fly Netting

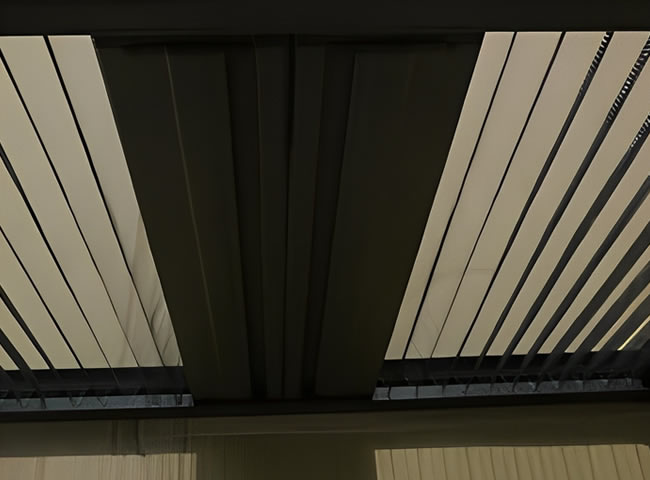

Pleated Insect Screen is a kind of versatile foldable insect screen mesh used for doors and windows. Pleated insect screen can be made of PET Pleated mesh, Polyester Pleated Mesh, Fiberglass Pleated Mesh, Polyester Pleated mesh, PP Pleated mesh.
PP Pleated mesh and PET Pleated mesh is much more popular in American market and European Market.
Polyester Pleated mesh is popularly used in Middle east market.
We are supplier of insect screen raw materials, mesh rolls, pre-pleated mesh materials and finished custom-size pleated insect screen products.
Standard and customized products available:
Pleated mesh fold heights: 10mm, 12mm, 14mm, 16mm, 18mm, 25mm, 28mm, 35mm, and custom fold heights.
Available widths from 1.0m to 3.0m, maximum width 4.0m, customized roll length.
Customized mesh size, yarn thickness, colors, UV resistance, fire-retardant properties.
Pleated Mesh Materials:
Fiberglass
PP
PET
Polyester
European-grade mesh
Pleated Mesh Insect Screen - Processes and Quality Assurance
The foldable pleat insect screen fold tightly back together after opening the screen.
Material requires ratio 1: 1.8 up, that is, one-meter door / window requires 1.8 meters fabric.
Quality: ROHS Test (RoHS1.0, RoHS2.0), Reach, Fire Resistance, CA65, Statement of Reach Compliance, UV 1000 hours Test, etc.
Features:
A. Eco-friendly materials
B. Pleated mesh sheet width up to max. 3.05M.
C. Long-life service guarantee of more than 5 years.

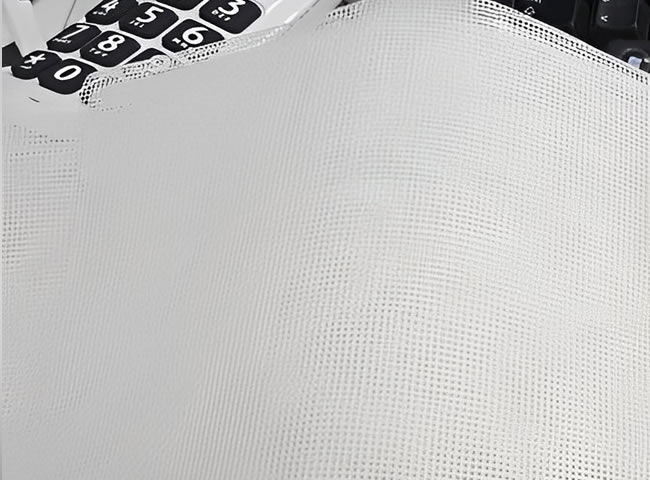

Fiberglass Pleated Mesh Insect Screen

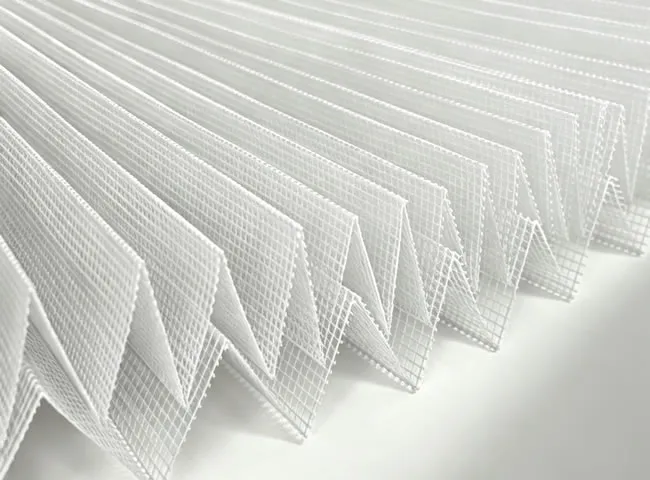

Fiberglass mesh white color, pre-pleated insect screen materials, supplied in rolls:
White coated insect screen mesh rolls
Pleated mesh panels:
Coated Fiber Mesh Pleated Pieces for aluminium rolling shutters and other frames,
Pleated mesh supplied in customized specifications and white colors (grey, black, other colors availble)
Pleat Height: 5mm-25mm

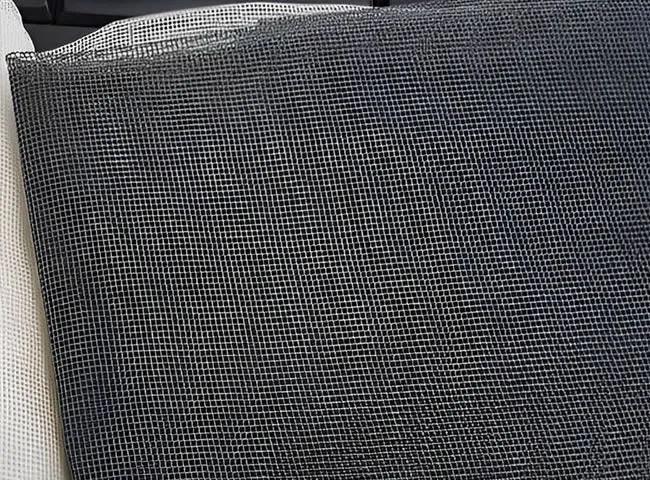

Fiber glass mesh black color, material for pleating of insect screen:
Fiberglass Insect Screen Mesh
Yarn Diameter: 0.28+2mm
Width: 0.6-3.2m
Length: 20-2000m

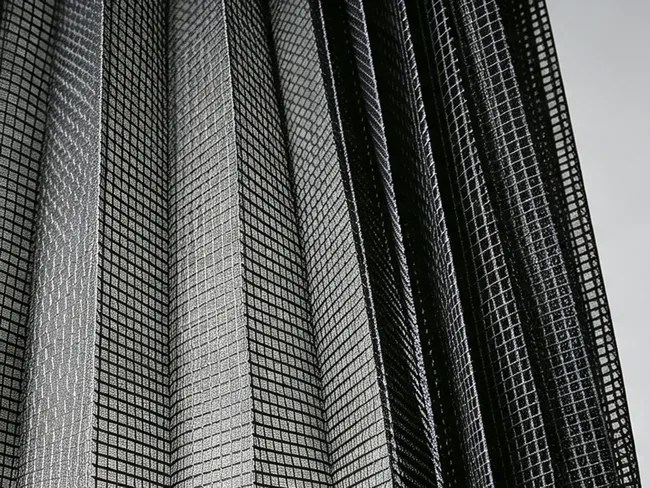

Pleated Fiber Insect Screen
Pleated Insect Screening Mesh with Folded High 14mm.
Specification: length 1,78 or 2,02 m, fold high 14 mm +0,2/-0,5
18*16 Inch Fiber Insect Screen

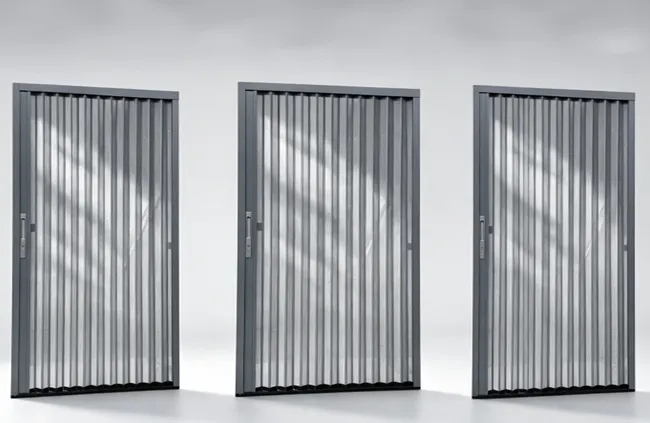

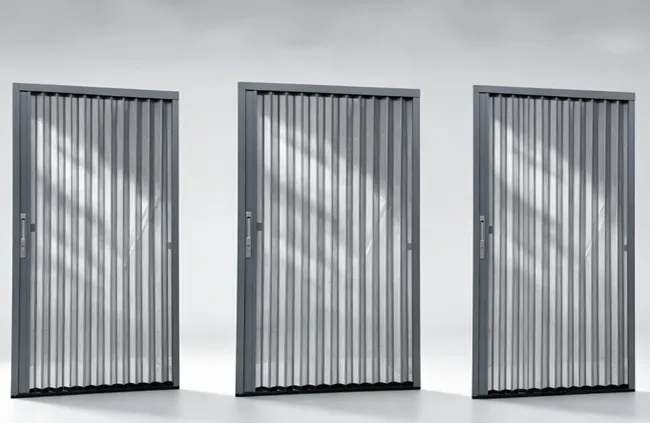

Pleated Insect Screen Door
Custom manufactured in various European styles
Main specifications for Fiberglass Pleated Mesh:
Color: gray, black and white
Width: 3 meters
Length: 30 meters per roll, or customized
Material: Fiberglass
Fiberglass & Polyester Pleated Mesh
Specifications:
Fold Height: 15mm-20mm
Width: 240cm, 260cm, 300cm, 340 cm
Length: 12.5-30m per piece
Cleaning: With Water and Soap

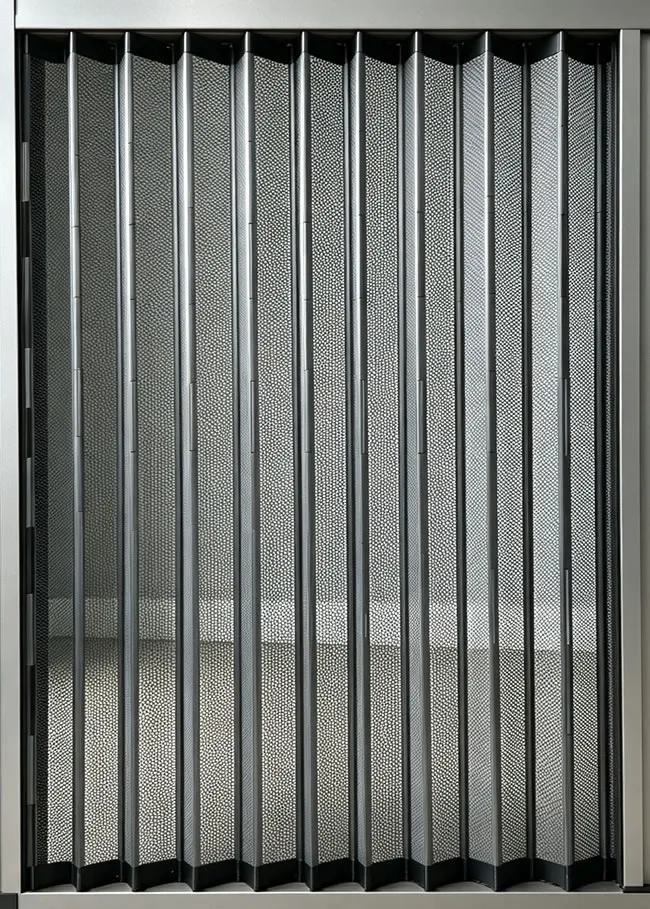

Plisse Pleated Insect Screen-18 x 16 Mesh
Flame Resistance woven mesh pleated for Sliding Insect Screens
Stiffness: Stiff
Available Colours: Grey, Black
Composition: Fiberglass & Polyester
Mesh: 18X16
Weight: 105 gr/mq +/- 2%
Thickness: mm 0,30 +/- 0,02
Hole Dimensions: 1,12 x 1,33 mm
Folding Height: 15 mm
Width: 340 cm
Heat Resistance: -35°C to +80°C
Flame Resistance: Class 2 Self-Extinguishing
20x20 Pleated Insect Mesh
Used as mosquito nets
Folding height 20 mm
Mesh: 20x20
Width 3 m

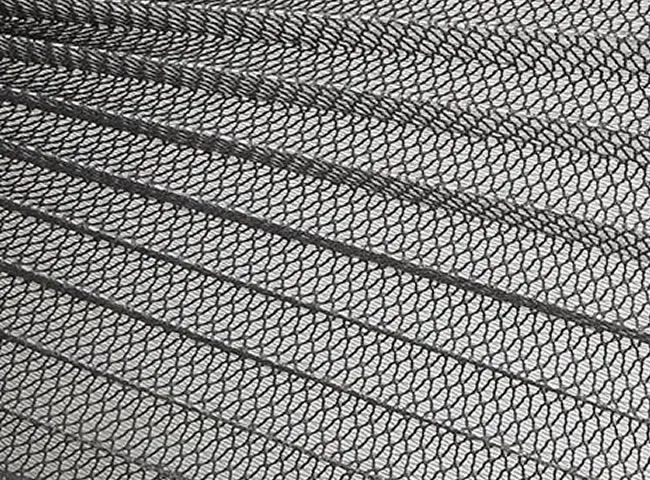

Polyester Pleated Mesh
Pleat folded insect screen polyester mesh for sliding windows and doors
Color: gray, black and white available
Width: 3 meters
Length: 30 meters per roll
Material: 100% polyester
PP Pleated Insect Screen for Doors
PP Pleated Mesh
High quality PP bonded at high temperature evenly-spaced.
Straight Latitude yarn and longitude yarn sealed with high technology heater.
No coating with any harmful chemicals or resins.
PP mesh 20x20 at width 3.05m entirely no cutting.
PP mesh at width 2.1m, 2.3m, 2.65m; 3 meters one cut: 1m+2m, 1.2m+1.8m, 1.4m+1.6m,1.5m+1.5m; Length 190±5m/ ctn.
Pleating into 15 ~15.9mm, 16~ 17.9 mm, 18-20mm
Colors: Black, grey
Suitable for doors and windows
Polyester Pleated Mesh
Material: Polyester with 65% PVC Coating
Fiber Diameter: 0.28mm
Mesh/Inch:
18x16 rectangular mesh
20x20 square mesh
Color: Black, Grey,etc.
Weight: 95g-120g/㎡
Pleated Height: 12mm-20mm
Width(m): Max..3m
Length(m): Max. 30m
Suitable for doors and windows.
