Fiberglass Mesh Net - ASTM E-Glass 18x16 Mesh,17x15Mesh

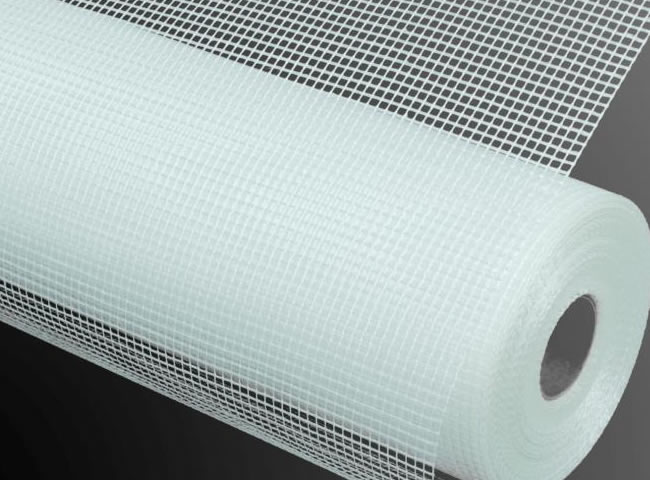

Fiberglass Mesh ASTM E Glass
Fiberglass Mesh of ASTM E Glass is a premium quality, industrial-grade mesh meeting the rigorous standards set by ASTM (American Society for Testing and Materials) for E Glass fiber.
Material: Mesh fabric from high-grade E Glass fibers as per ASTM standards.
Weave Type: Uniform, tight weave pattern for optimal strength and stability.
Weight Range: Available in various weights.
Features:
High Tensile Strength;
Thermal Resistance;
Chemical Resistance;
Dimensional Stabilit under mechanical and thermal stress;
Corrosion Resistance, ideal for outdoor or moisture-prone applications;
Low Moisture Absorption.
ASTM E Glass Fiber Mesh Applications:
- Construction Reinforcement: Used in concrete reinforcement, plastering, and masonry for added strength.
- Building Material: Suitable for high-temperature insect screen applications.
- Electrical Insulation: Acts as a reliable insulator in various electrical applications.
- Automotive: Utilized in automotive components for reinforcement and insulation.
- Marine: Employed in boat building and repairs due to its resistance to water and corrosion.
Fiber Glass Mesh (ASTM E-Glass) Insect Screening
Mesh Size : 18*16 Mesh
GSM: 110
Roll Width: 3ft , 4ft ,5ft, 6ft
Roll Length: 30M
Color : Grey
Fiber Glass Mesh (ASTM E-Glass) Insect Screening
Mesh Size : 18*16 Mesh
GSM: 110
Roll Width: 3ft , 4ft ,5ft, 6ft
Roll Length: 30M
Color: Black
Fiberglass Mesh Net ASTM E-Glass
Material: Fiberglass ASTM E Glass
Mesh: 17x15 mesh
Width: 140cm to 170cm
Weight: 110g to 130g per M2
Roll length: 50 meter, 100 meter per roll
Fiber Material Composition Specifications:
SiO2 52-62%
Alkaline Oxides (Na2O, K2O) < 2%
Alkaline ferrous oxides (CaO, MgO....) 16-30%
B2O3 0-10%
Al2O3 11-16%
TiO2 0-3%
Fe2O3 0-1%
F2 0-2%
