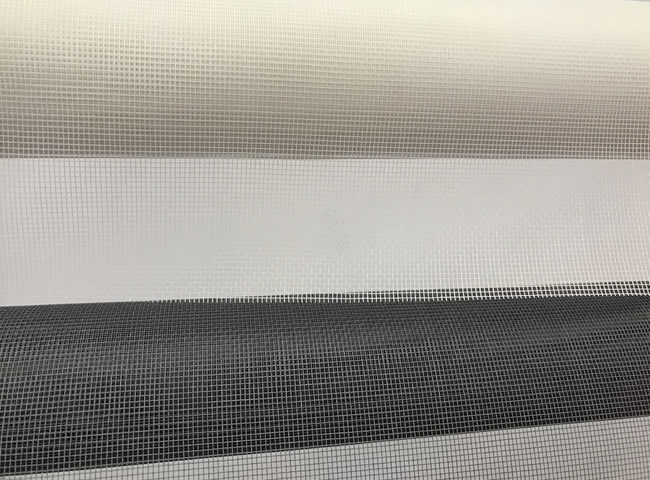

Fiberglass Mesh and Tape for Thermal Insulation and Facade Finishing
Fiberglass Mesh is popularly used for reinforcement of thermal insulation and strengthening facade finishing system, supplied in fabric rolls and tapes forms. Exported to Ukaine and other countries.
Thermal Insulation Fiber Glass Mesh Properties:
Alkali-resistant;
Braided, strong, elastic glass;
Easy to use;
Environmentally friendly.
Thermall Insulation Fiber Glass Mesh for Reinforcement of Facade Systems of Bonded Thermal Insulation
Application: To reinforce waterproofing layer in systems of thermal insulation and strengthening of putty layers at finishing of facades
Specifications:
Cell / mesh size: 4.0 × 4.5 mm (± 0.5)
Weight: 145 g / m2 (+ 10%)
Thread thickness: 0.58 mm (± 0.2 mm)
Breaking load in the initial state, N / 5 cm: Min. 1500 N / 5 cm (in both directions); in fact: ≥1900 N / ≥1800 N
Tensile load after 28 days in 5% NaOH solution at a temperature of +18 to 30 ° C, N / 5 cm reduction of tensile load by not more than 50%; in fact: ≥1000 N / ≥1000 N
Roll: 55 m2
Width: 1100 mm
Product yield: 50 m2 from 1 roll
Consumption: 1.1 m2 / m2 surface
Thermal Insulation Fiber Glass Tape
Roll width 10cm
Thickness 3mm
Roll length: 25m
Temperature up to 700°c
Fiber Glass Tape
3mm thickness x 50mm Width
Fiber Glass Tape
5 mm Thickness x 50mm width
Fiber Glass Tape
Thickness 3 mm width x 75 mm x 30m length
Insulation Finishing Fiberglass Mesh 145 g and 160g
Fiberglass mesh used as reinforcement in cement adhesive layer used for exterior insulation finishing system.
Specification:
Mesh size 5mm x 5mm
Roll length 50m x roll width 1m
Mesh weight 145 g/m2
Mesh weight 160 g/m2
Color: white for both weight
Color pink for 160 g/m2 fiberglass mesh
Green or baby blue for 145 g/m2 fiber mesh
Packing: Plastic wrap shrink + woven bags
